LTPD & CAPD Series
New low voltage LTPD and CAPD series thermal printer mechanisms tackle the challenges of designing smaller, faster, more reliable mobile devices. These new mechanisms deliver exceptional value with dramatic advances in design flexibility, reliability and print performance.
Small
LTPD/CAPD series mechanisms free up critical design real estate. The new mechanisms provide a smaller overall form factor, innovative angled paper guide requiring less depth, and a smaller pitch flexible print circuit (FPC) cable.
Fast
LTPD/CAPD series mechanisms are fast, rated for up to 100 mm/second print speeds. This gives mobile devices a much needed performance boost.
Flexible
LTPD/CAPD series mechanisms offer a wide array of form factor choices to provide versatility and flexibility for smoother integration. Options include EZ-OP clamshell-style and auto-loading models, ASIC and interface board solutions, and both horizontal and vertical mechanical orientation designs.
Reliable Printing
LTPD/CAPD series mechanisms offer a minimum of 50 km of total printing and 100 million pulses. CAPD models offer a new built-in auto-cutter design, improving cutter reliability. The result: reliable media output, every time.
Product Highlights
- 2″ and 3″ print width models
- High speed printing (up to 100 mm/second)
- Choice of horizontal and vertical orientations
- EZ-OP clamshell and auto-loading paper replacement options
- Platen latch for better shock absorption
- Built-in auto-cutter (CAPD models)
LTPD and CAPD Series Downloads
Documentation & Warranty
- LTPD/CAPD Series Datasheet
- CAPDx45 Technical Reference
- LTPD245 & LTPD345 A/B/F/G Technical Reference Manual
- LTPD245 & LTPD345 C Technical Reference
- LTPD245 & LTPD345 D/H Technical Reference
- LTPD245E & LTPD345E Technical Reference
- Control Chip Set Technical Reference
- Interface Board Technical Reference
- Warranty
| Technical Specifications | |||||
|---|---|---|---|---|---|
| Model | LTPD245 | LTPD345 | CAPD245 | CAPD345 | |
| Printing | Method | Thermal line dot printing | |||
| Number of dots/line | 384 | 576 | 384 | 576 | |
| Resolution | 203 dpi (8 dpmm) | ||||
| Paper width | 2.28 inch (58mm) | 3.15 inch (80mm) | 2.28 inch (58mm) | 3.15 inch (80mm) | |
| Printing width | 1.89 inch (48mm) | 2.83 inch (72mm) | 1.89 inch (48mm) | 2.83 inch (72mm) | |
| Speed (max/sec) | 3.94 inch (100mm) | 3.15 inch (80mm) | 3.94 inch (100mm) | 3.15 inch (80mm) | |
| Paper path | Curved | ||||
| Detection | Head temperature | By thermistor | |||
| Platen position | By mechanical switch | ||||
| Out of paper | By photo interrupter | ||||
| Power supply (V) | Operation voltage (Vdd) | 2.7 to 3.6 / 4.75 to 5.25 | |||
| Operation voltage (Vp) | 4.75 to 9.5 | ||||
| Peak current (A) | Head | 3.66 (9.5V/64dots) 5.49 (9.5V/96dots) | 3.60 (9.5V/64dots) 5.40 (9.5V/96dots) | 3.66 (9.5V/64dots) 5.49 (9.5V/96dots) | 3.60 (9.5V/64dots) 5.40 (9.5V/96dots) |
| Motor | 0.6 | ||||
| Service life | Pulse activation (pulse) | 100 million | |||
| Abrasion resistance | 31.1 miles (50km) *1 | ||||
| Operating temperature | 14 to 122 °F (-10 to 50 °C) *2 *3 | ||||

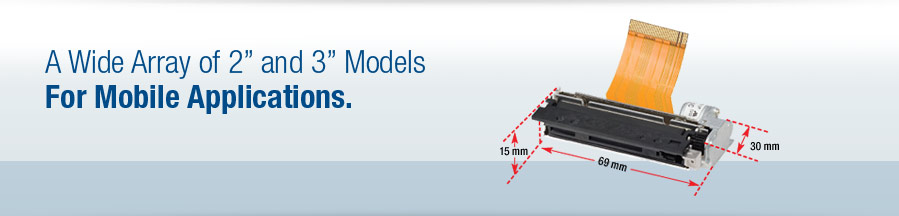

| Dimensions (WxDxH) *2 | Horizontal | 2.72 x 1.18 x 0.59 inch (69.0 x 30.0 x 15.0 mm) | 3.58 x 1.18 x 0.59 inch (91.0 x 30.0 x 15.0 mm) | 3.20 x 1.39 x 1.06 inch (83.1 x 35.4 x 26.9 mm) | 4.34 x 1.39 x 1.07 inch (105.1 × 35.4 × 27.2 mm) |
| Vertical | 2.72 x 0.59 x 1.18 inch (69.0 x 15.0 x 30.0 mm) | 3.58 x 0.59 x 1.18 inch (91.0 x 15.0 x 30.0 mm) | |||
| Mass | Approx. 0.09 lbs (40g) | Approx. 0.13 lbs (58g) | Approx. 0.28 lbs (125g) | Approx. 0.33 lbs (148g) | |
| Auto-cutter | Method | – | – | Slide cutting | |
| Paper thickness (μm) | – | – | 54 to 90 | ||
| Cutting type | – | – | Full cut and partial cut (1.5  0.5mm tab left at the center) | ||
| Operating time (max sec/cycle) | – | – | Approx 1.0 | ||
| Minimum paper cutting length | – | – | 0.39 inch (10mm) | ||
| Cutting frequency (max cuts/min) | – | – | 30 | ||
*1 Use recommended thermal papers. *2 Excluding protrusion. *3 -22 to 158˚F (-30 to 70˚C): Supported by designated conditions only.
| Interface Specifications | |||
|---|---|---|---|
| Model | IFD501-01UK-E | IFD501-01SK-E | |
| CPU | PTD50P01-E | ||
| Thermal printer | LTPD245, LTPD345, CAPD245, CAPD345 | ||
| Operating voltage (V) | Vp:4.75 to 9.5 | ||
| Character matrix (HxW dots) | 16 dots characters: 16 X 8, 16 X 16 24 dots characters: 24 X 12, 24 X 24 | ||
| Character type | Extended graphics character set, Katakana character set 1, Katakana character set 2, Codepage 1252, User page, Downloaded character, Optional font, JIS 1st and 2nd level kanji, User-defined character | ||
| Communication interface | USB (2.0) | Serial (RS-232C) | |
| Dimensions (WxDxH) | 2.72 x 1.97 x 0.55 inch (69.0 × 50.0 × 14.0 mm) | ||
| Software | Printer Driver/SDK, Linux® CUPS Filter/SDK | ||
| CPU Specifications | |
|---|---|
| Model | PTD50P01-E |
| Corresponding model | LTPD245, LTPD345, CAPD245, CAPD345 |
| Package form | 120pin QFP |
| Operating voltage (V) | Vp:4.75 to 9.5, Vcc:3.0 to 3.6 |
| Input frequency (MHz) | 12 ± 0.01% |
| Configuration | C-MOS LSI |
| Communication interface | Parallel, Serial, USB |
| Character type | Extended graphics character set. Other characters available with CGs *1 or external ROM |
| Character matrix (HxW dots) | 16 dot character: 16 x 8, 16 x 16 24 dot character: 24 x 12, 24 x 24 |
| Dimensions (WxDxH) | 0.63 x 0.63 x 0.07 inch (16.0 x 16.0 x 1.7 mm) |
| Software | Printer Driver/SDK, Linux® CUPS Filter/SDK |
| Optional Cables | |
|---|---|
| Product | |
| Power Cable | DC-04100A-E |
| Switch Cable | OC-D1430A-E |
| Serial Cable | OC-D0730A-E |
| USB Cable | IFC-U01-1-E |
