Industry Best Total Cost of Ownership

At a time when mobile printing and payments are becoming even more prevalent, especially as business processes are becoming more digitally driven for consumers and end users in a variety of vertical markets, it’s only natural that technology is moving toward this trend. In fact, according to a TechSci Research report, “Global Mobile/Portable Printers Market Opportunities & Forecast, 2020,” the mobile printer market is projected to exceed USD13 billion through 2020. This is expected to include everything from digital receipts printed out at your favorite department store, to pay at the table at your local restaurant.

Seiko Instruments has designed its newest mobile printer series—the MP-A40, with these statistics and trends in mind. What’s also unique about the MP-A40 Series Mobile Printers is while they are ergonomically designed to be used in verticals such as hospitality and retail, they also have the ruggedness and strength for usage in areas such as direct-store delivery, warehousing and logistics, field service and public utilities.

Rugged and Reliable Printing

With the ability to withstand multiple drops from up to 6.6 feet (2 meters), the MP-A40 Series Mobile Printers are known for their highest level print speeds currently available on the market. Imagine being able to print high-resolution receipts at 100 mm per second! What’s more is after several tests performed in our product lab, the MP-A40 mobile printer was able to perform at 100% after multiple drops.

Simple Operation, Stylish Design

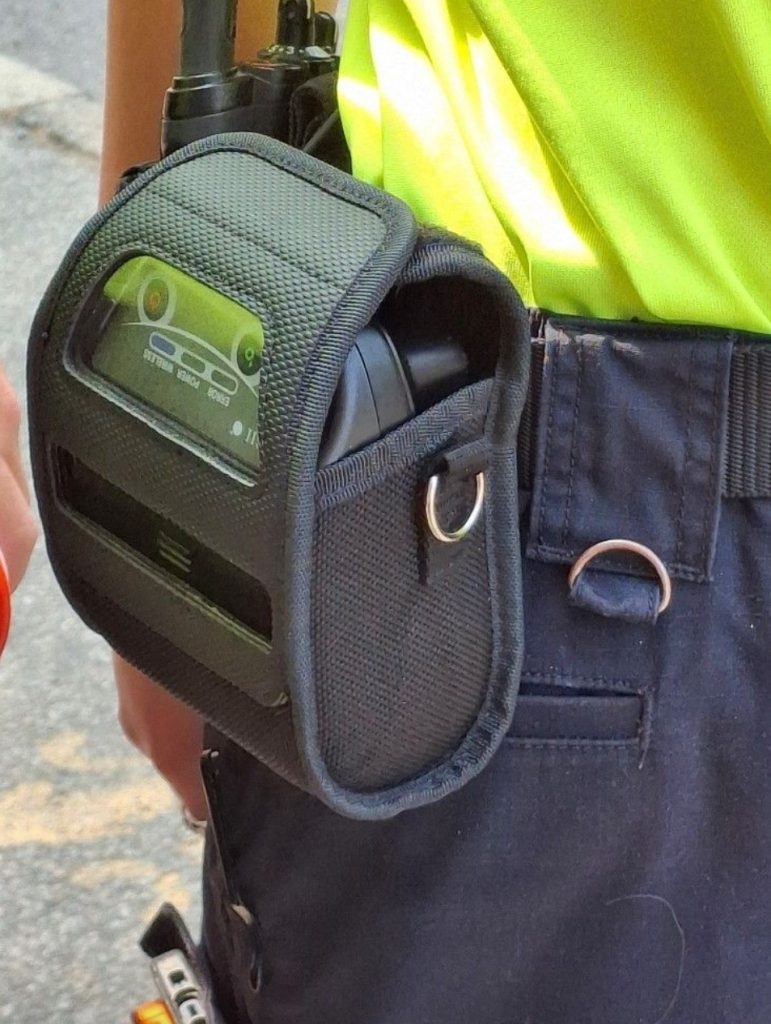

With up to a 4-inch paper width, and weighing more than 1.5 pounds, the MP-A40 Series mobile printers are built tough, but that doesn’t mean they lack in style or simplicity. With an easy drop-in paper setting and easy access button, the printers offer a smart and robust design that easily fit into the palm of your hand, or belt clip; a small carry-on case offers the option of over-the-shoulder transport.

Technology Options

The MP-A40 Series Mobile Printers offer compatibility with the latest operating systems including Windows, 7, 8, 8.1 and 10. There is also SDK availability for both Android and Windows CE print class libraries for added mobility. Other option parts include AC adapter, battery pack, AC cable, battery charger (for both single and quad battery), car charger and USB cable. The printers also offer auto-detection Bluetooth interface and Wi-Fi capabilities, providing added value and easy transition from cable to wireless communications.

  • 100% performance after multiple drops of up to 6.6 feet.
  • High-resolution receipts at 105 mm/second.
  • Stylishly rugged and ergonomic design.
  • Applications such as e-citations, parking tickets, accident reports and Labeling.
  • Mobility in a durable and robust package.
  • MIL-SPEC 810G approved.
  • IP54 RATING.
  • Compatible with Windows, iOS & Android systems.

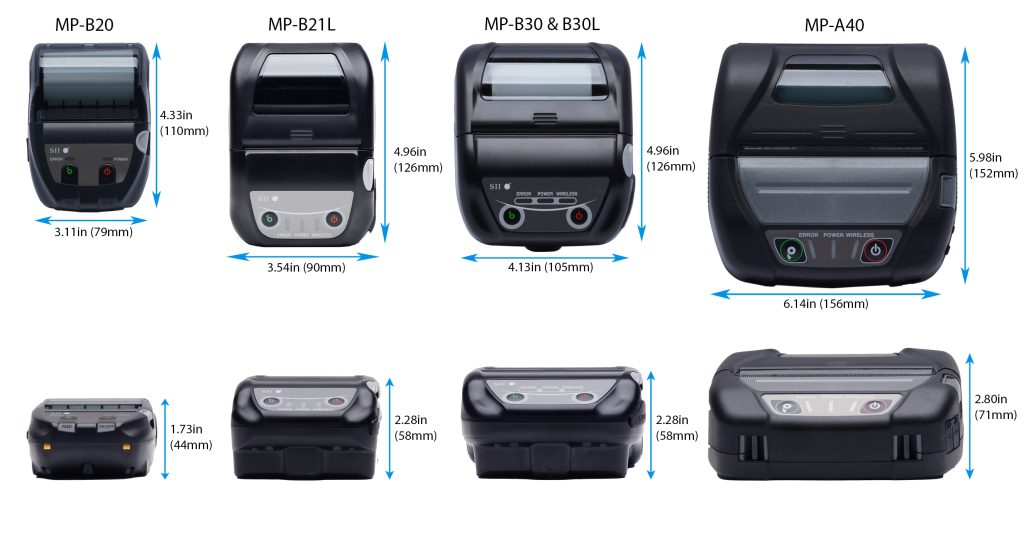

Mobile Printer Dimensions

MP-A40 Video

MP-A40 Photos

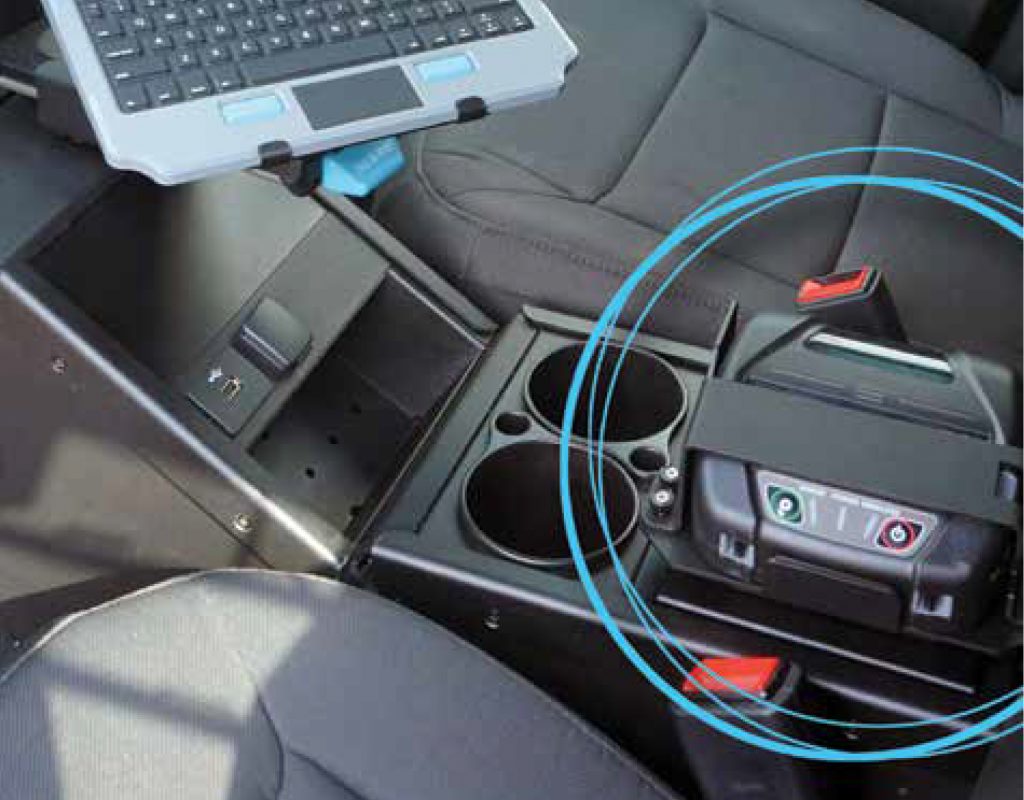

MP-A40 Law Enforcement Installation

MP-A40 Battery
Eliminator Kit

Optional Battery Bypass Kit
SKU: MP-A40-B06JK2U
Technical Specifications
ModelMP-A40
PrintingMethodThermal line dot printing
Number of dots/line832
Resolution203 dpi (8 dpm)
Paper width3.15/3.94/4.0/4.13/4.41 inch (80/100/101.6/105/112 mm)
Printing width4.09 inch (104mm)
Speed4.13 inch (105mm) /sec
Outside diameter of paper roll max2.28 inch (58mm)
Character matrix (H×W dots)24 × 12, 24 × 24, 16 × 8, 16 × 16
Character dimensions (H×W)0.19 x 0.06, 0.19 x 0.19, 0.08 x 0.04, 0.04 x 0.04 inch (3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0 mm)
Type of paperRoll paper, Label roll paper
Character typeCodepage (17 pages), Katakana character set, User-defined character, Downloaded character, Optional font, JIS 1st and 2nd level Kanji, Special characters
Bar codeUPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE93, CODE128, PDF417, QR Code, MaxiCode, Data Matrix, GS1 Databar
Power supply (V)Option: Specified AC adapter, Li-ion battery
Communication interfaceUSB, Bluetooth® *1
Input buffer4K bytes
CommandESC/POS™ conformity, CPCL conformity, HTML command
CuttingTear bar
Drop rating6.6 feet (2.0m) multiple *2
IP ratingIP54 *2
Operating temperature-4 to 122 °F (-20 to 50 °C)
Service life31.1 miles (50km) *3
Dimensions (WxHxD)6.14 x 5.98 x 2.80 inch (156 x 152 x 71 mm) *4
MassApprox. 1.68 lbs (760g) *5
StandardFCC, CE, VCCI
Bundled itemsBelt clip, Partition plate
OptionsAC adapter, Battery pack, Battery charger (single/quad), AC cable, USB cable, Serial cable, Car charger, Strap
SoftwarePrinter Driver/SDK, Windows® CE SDK, Android™ SDK, iOS SDK

*1 Selected model. *2 Test performance by specified condition. *3 Use recommended thermal papers. *4 Excluding protrusion. *5 Including battery, excluding roll paper.
