Mobile Printing Made Easy
The switch to mobile computing can offer dramatic bottom line results, by making users more efficient, shortening transaction times, expanding revenue opportunities, and more. The transition to mobility can be daunting though. Equipment has to be durable enough to perform consistently in the field. Downtime is not an option. Technology must be intuitive for operators who are not IT professionals. And with constrained budgets, solutions must provide an immediate return on investment.
DPU-S series mobile printers tackle the challenges of going mobile with durable, easy-to-use, and cost-effective models that accelerate ROI.
Reliable High-performance Printing
DPU-S models can survive multiple 4-foot drops to concrete* and are rated for a minimum of 50 km total printing, or approximately 328,000 six-inch printouts. This proven reliability ensures long-life performance in rugged mobile printing environments.
Travels Light, Ease to Use
These printers are designed for maximum portability and ease of use. With small footprint, very lightweight designs, DPU-S printers provide an exceptional alternative to other heavier, bulkier models. Clamshell-style paper replacement means you can drop in a new roll without slowing down. And intuitive LED readouts give clear indications of printer status.
Maximum Return on Investment
Highly cost-effective DPU-S printers provide the ideal mobile printing solution for today’s constrained IT budgets. By providing exceptional value for products that perform day in and day out, DPU-S series printers deliver the right business case for going mobile.
*with carrying case

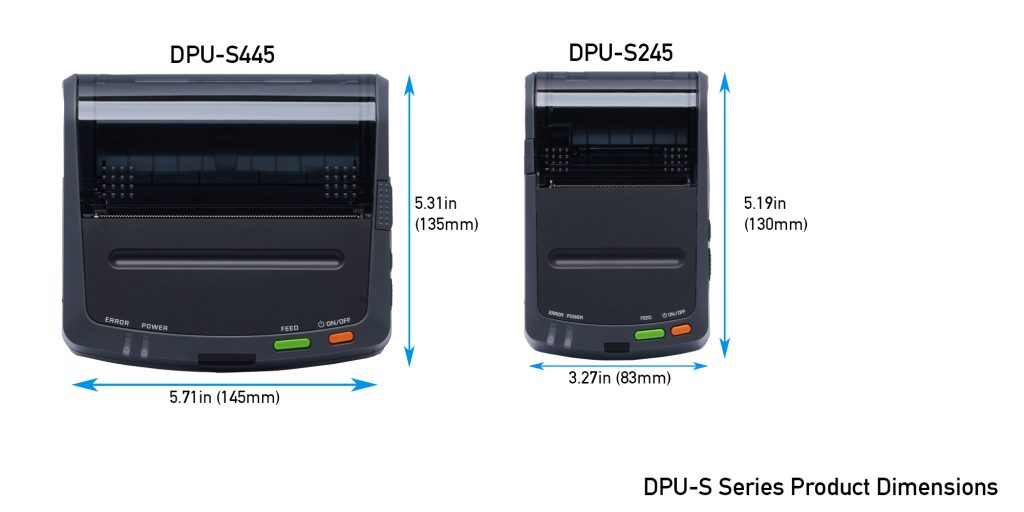

Mobile Printer Dimensions

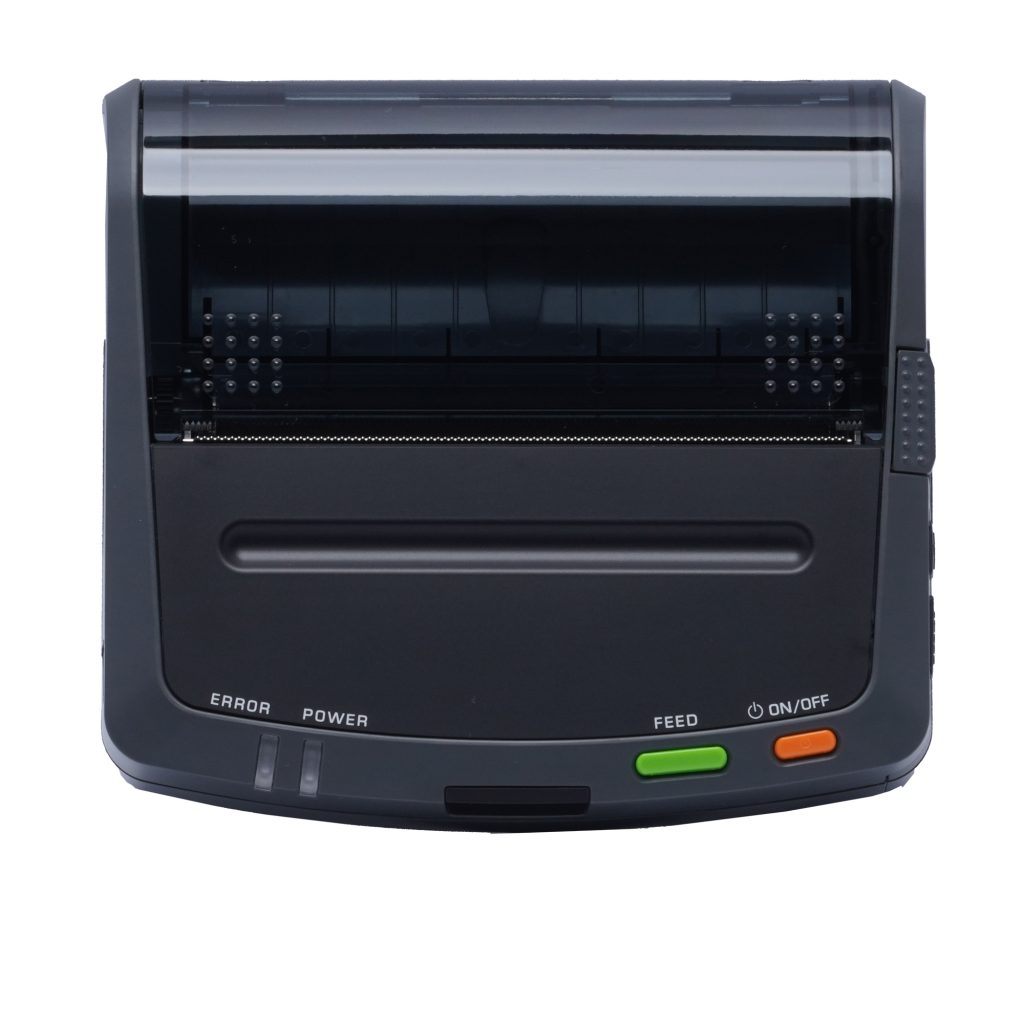

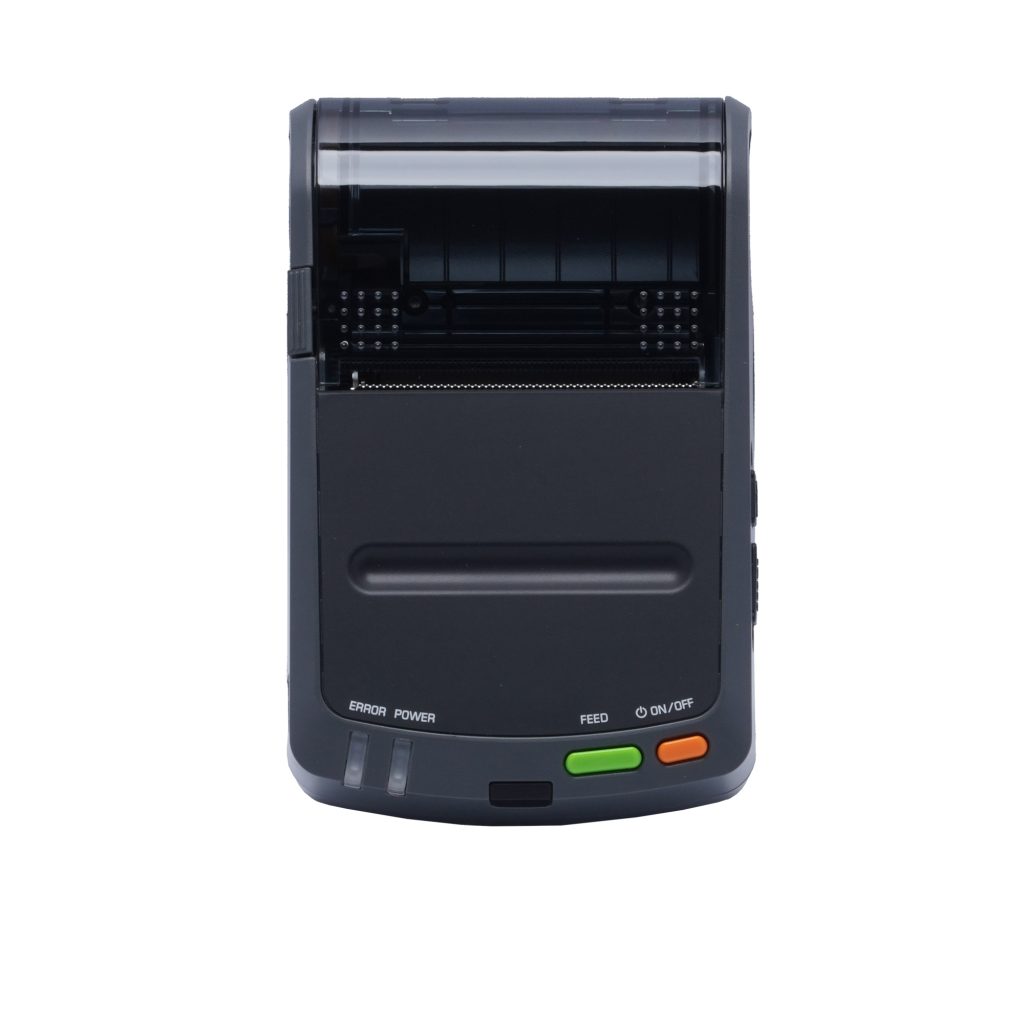

DPU-S Series Photos
Documentation & Warranty
- Datasheet
- Datasheet (Português)
- Datasheet (Español)
- DPU-S445 User's Guide
- DPU-S445 Technical Reference
- DPU-S245 User's Guide
- DPU-S245 Technical Reference
- FCC Declaration of Conformity - DPU-S245
- FCC Declaration of Conformity - DPU-S445
- FCC Declaration of Conformity - PWC-L07C1-W1 - Lithium-ion Battery Charger
- Warranty
| Technical Specifications | |||
|---|---|---|---|
| Model | DPU-S245 | DPU-S445 | |
| Printing | Method | Thermal line dot printing | |
| Number of dots/line | 384 | 832 | |
| Resolution | 203 dpi (8 dpm) | ||
| Paper width | 2.28 inch (58mm) | 4.41 inch (112mm) | |
| Printing width | 1.89 inch (48mm) | 4.09 inch (104mm) | |
| Speed max | 3.94 inch (100mm) /sec | 3.54 inch (90mm) /sec | |
| Outside diameter of paper roll max | 1.50 inch (38mm) /sec | 1.97 inch (50mm) /sec | |
| Character matrix (HxW dots) | 24 x 12, 24 x 24, 16 x 8, 16 x 16 | ||
| Character dimensions (HxW) | 0.19 x 0.06, 0.19 x 0.19, 0.08 x 0.04, 0.08 x 0.08 inch (3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0 mm) | ||
| Number of columns | 24, 12, 32, 16 | 52, 26, 69, 34 | |
| Type of paper | Roll paper, Label roll paper | Roll paper, Label roll paper, Cut sheet paper | |
| Character type | Extended graphics character set, Katakana character set, CP1252, Optional font, Downloaded character, User-defined character, JIS 1 & 2 level kanji | ||
| Bar code | UPC-A/E, JAN (EAN) 8/13, ITF, CODE39, CODABAR, CODE128, PDF417, QR Code, MaxiCode, Data Matrix | ||
| Power supply (V) | Li-lon Battery, Specified AC adapter | ||
| Communication interface | Bluetooth® *1, USB, Serial | ||
| Input buffer | 4K bytes | ||
| Command | ESC/POS™ conformity | ||
| Cutting | Tear bar | ||
| Operating temperature | 14 to 122 °F (-10 to 50 °C) | 32 to 122 °F (0 to 50 °C) | |
| Service life | 31.1 miles (50km) *2 | ||
| Dimensions (WxDxH) | 3.27 x 5.19 x 1.77 inch (83 x 130 x 45 mm) *3 | 5.71 x 5.31 x 2.28 (145 x 135 x 58 mm) *3 | |
| Mass | Approx. 0.62 lbs (280g) *4 | Approx. 1.08 lbs (490g) *4 | |
| Standard | FCC, CE, VCCI | ||
| Options | AC adapter, Battery pack, Battery charger, AC cable, USB cable, Serial cable, Carrying case | ||
| Software | Printer Driver/SDK, Windows® CE SDK, Android™ SDK, iOS SDK | ||
*1 Only Bluetooth® model.
*2 Use recommended thermal papers.
*3 Excluding protrusion.
*4 Including battery, excluding roll paper.
